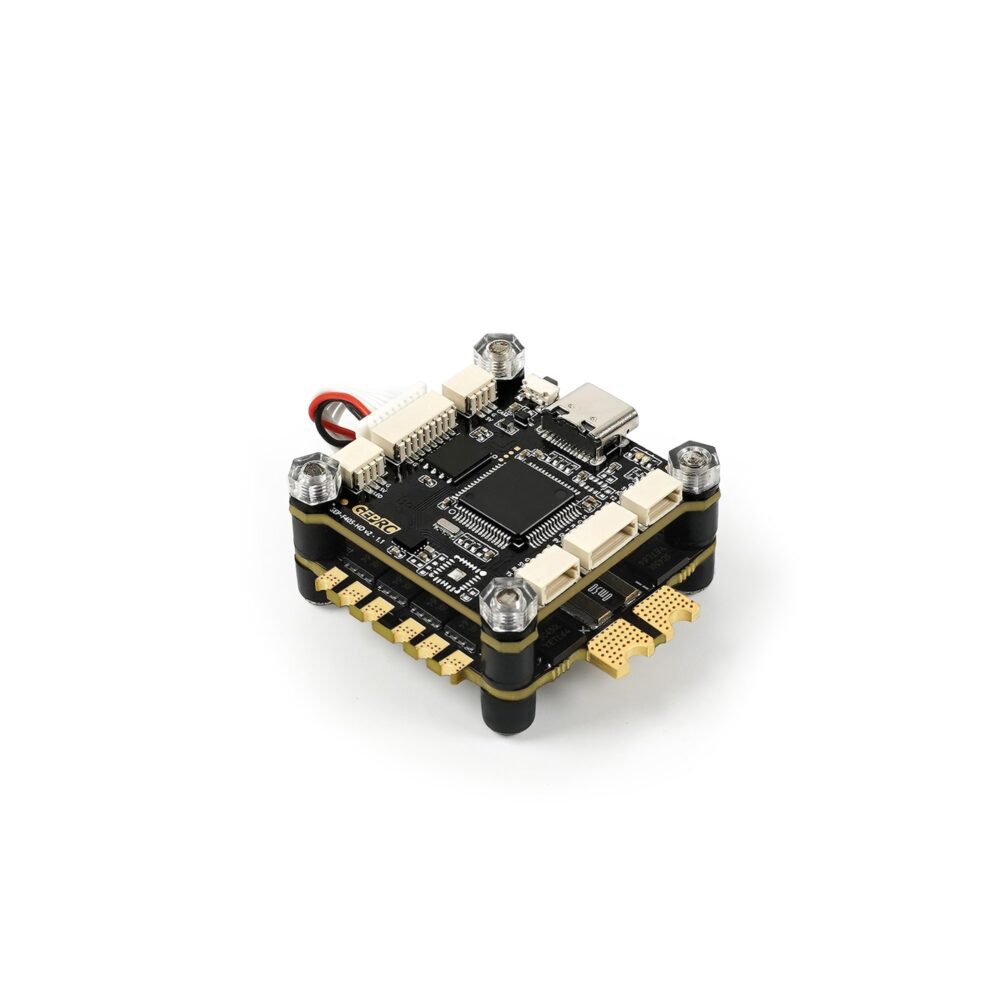

GEPRC TAKER F405 BLS 60A V2 STACK

Description

Summary

GEPRC TAKER F405 BLS 60A STACK is a plug-and-play flying tower system specially designed for DJI Air Unit.Use STM32F405 chip, ICM42688-P gyroscope, integrated 16M black box, and GEP-BLS60A-4IN1 ESC to have a more delicate hand feeling experience.

The TAKER F405 BLS 60A STACK can be directly plugged into the DJI Air Unit, which can save the trouble of welding. Upgrade the type-C USB interface, which greatly improves the service life of the socket and reduces the risk of poor contact. 9V@2.5A + 5V@3A dual independent BEC, more stable power supply for external devices.

Features

• Use mainstream STM32F405 chip
• Equipped with the latest 42688-P gyroscope
• 16M black box storage
• Integrated LC filter
• Upgrade type-C USB interface
• Directly plugged into the DJI Air Unit
• With GEP-BLS60A-4IN1 ESC, the flying feel is silky
• Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
• 9V@2.5A + 5V@3A dual independent BEC

Specifications

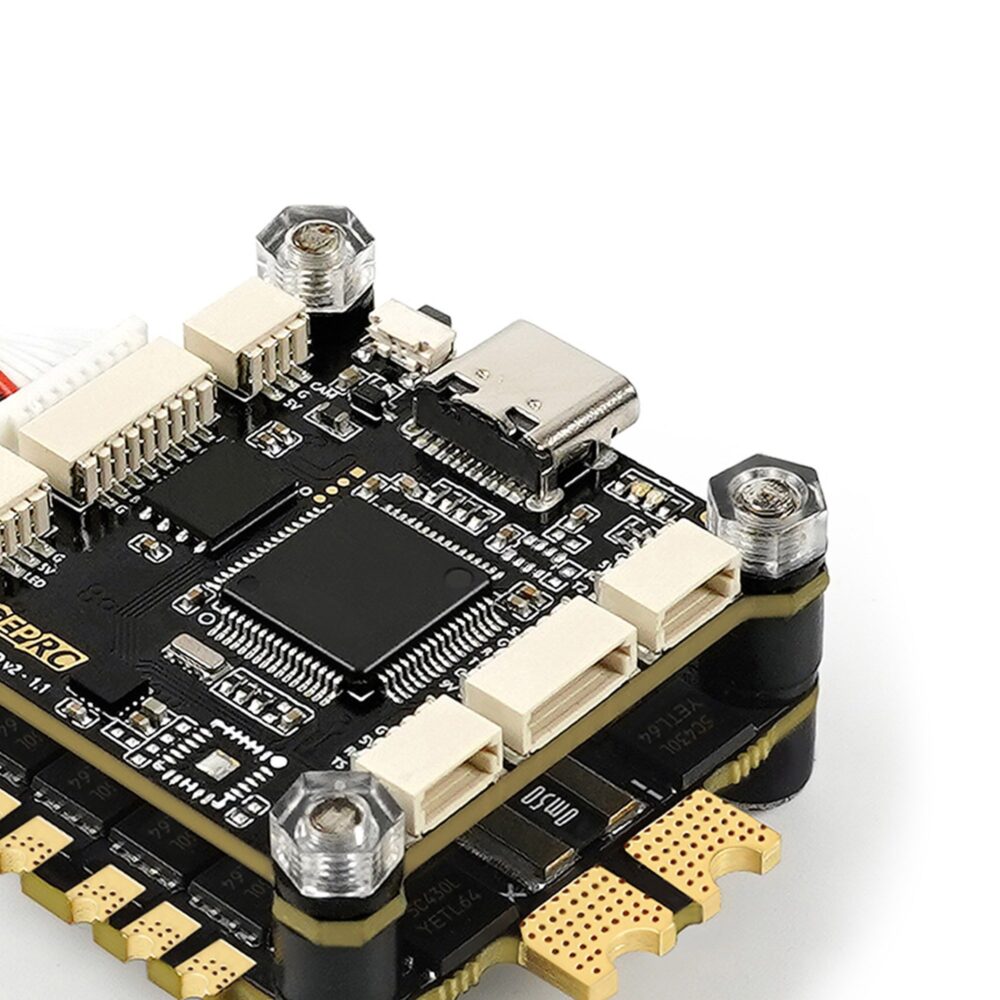

GEP-F405-HD v2 Flight Controller

• MCU：STM32F405
• IMU：ICM42688-P(SPI)
• Air Unit Connection：Direct plugging into DJI Air Unit
• Black Box：16M onboard
• USB Interface：Type-C
• OSD：BetaFlight OSD w/ AT7456E chip
• BEC：5V@3A,9V@2.5A dual BEC
• Firmware Target：GEPRCF405
• Size：36.8×36.8mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
• Input Voltage：3-6S LiPo
• UART：6
• Power Filter：Integrated LC filter
• Weight：7.7g

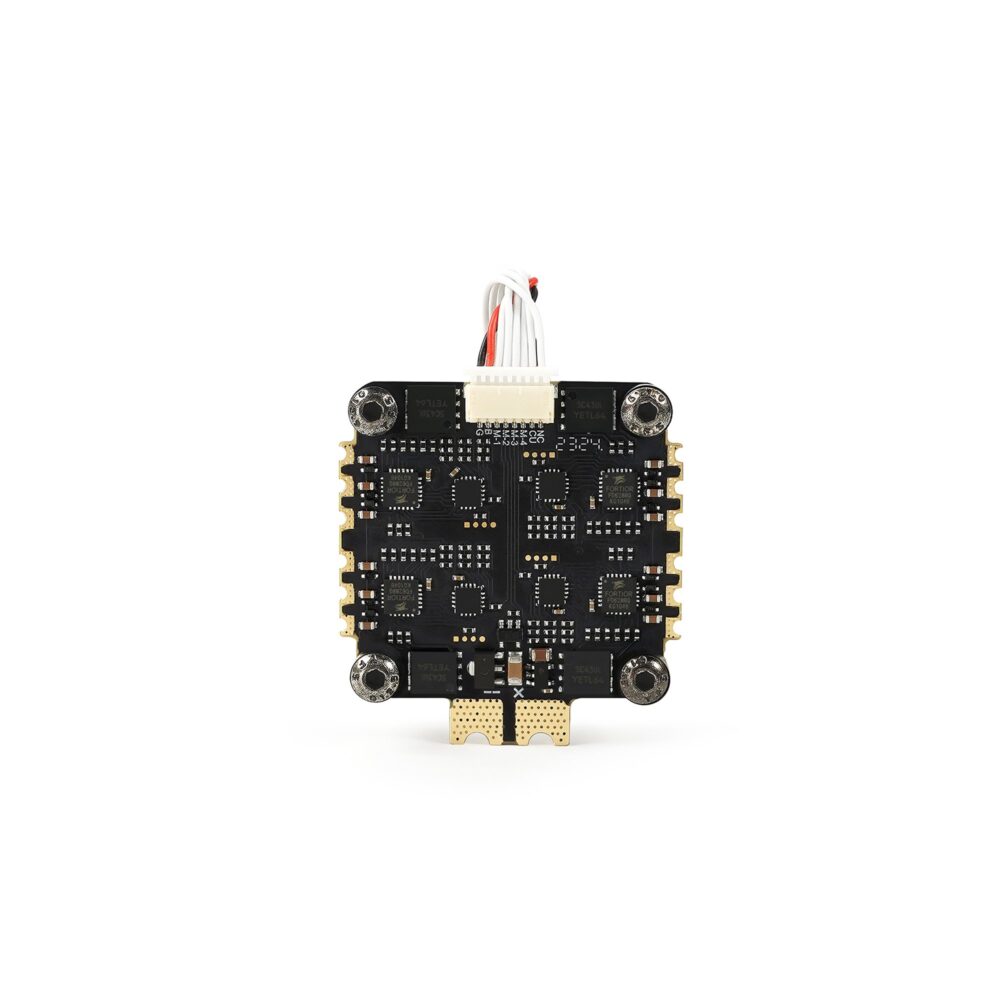

GEP-BLS60A-4IN1 ESC

• Input Voltage：3-6S Lipo
• Galvanometer：Support
• Continuous Current：60A
• Burst Current：65A（5 seconds）
• Support Protocol：Dshot 150/300/600
• Size：42.9×39.7mm, hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing circle.
• Weight：13.7g
• Target：G_H_30

 Includes

1 x Flight Controller

1 x ESC

1 x Capacitor

1 x DJI Air Unit Adapter Cable

1 x Flight Controller Adapter Cable

1 x XT60 Power cable

4 x M3*30 Screws

4 x M3*25 Screws

8 x Nylon nuts

8 x Silicone grommets

2 x sh1.0 4pinsilicone cable

1 x Camera connection cable
