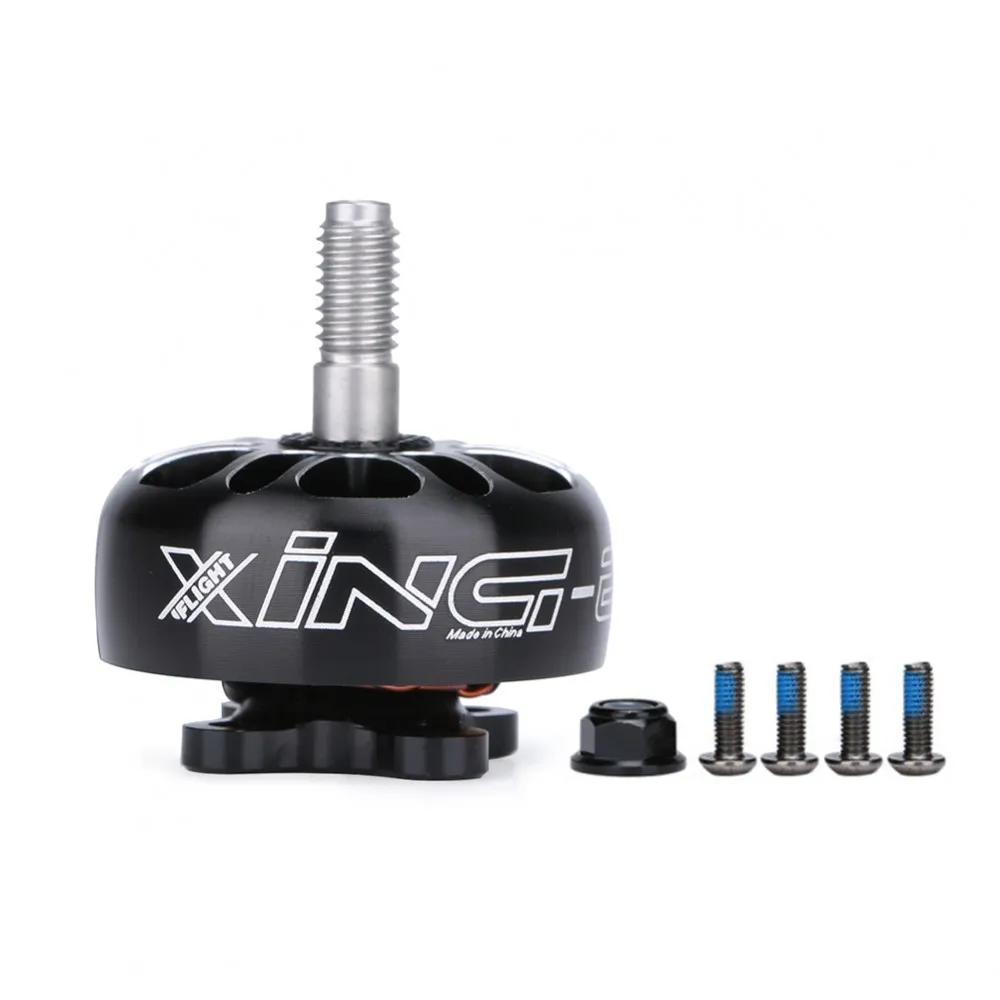

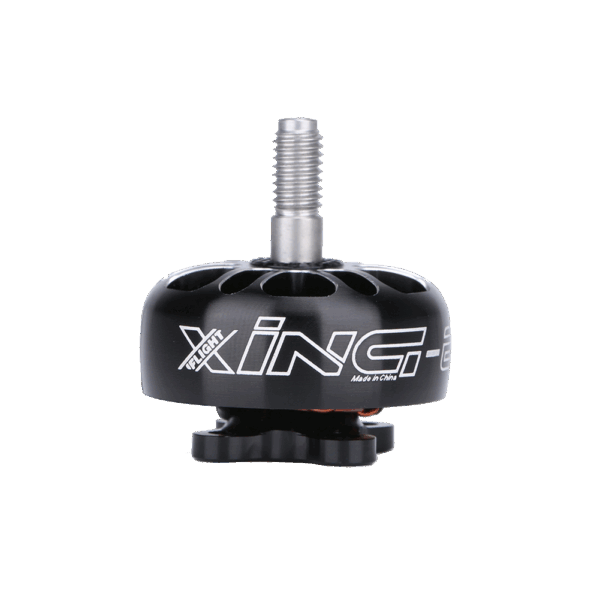

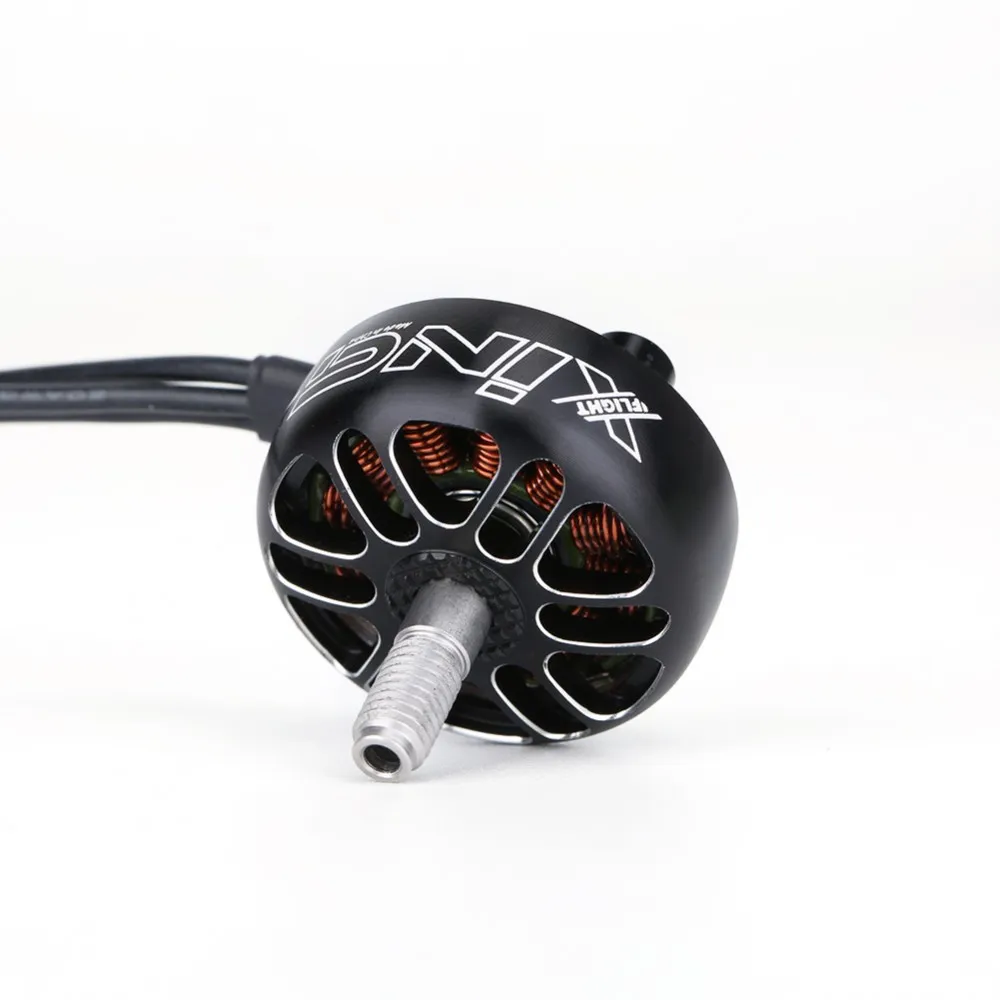

iFlight XING-E Pro 2306 2-6S FPV Motor
Claim GST input credit with B2B billing. Please enter your GST number at checkoutÂ
In stock
Found it cheaper anywhere? Share details, and we’ll make sure you get the best deal.
For bulk orders or B2B inquiries, contact us at sales@uavstore.in

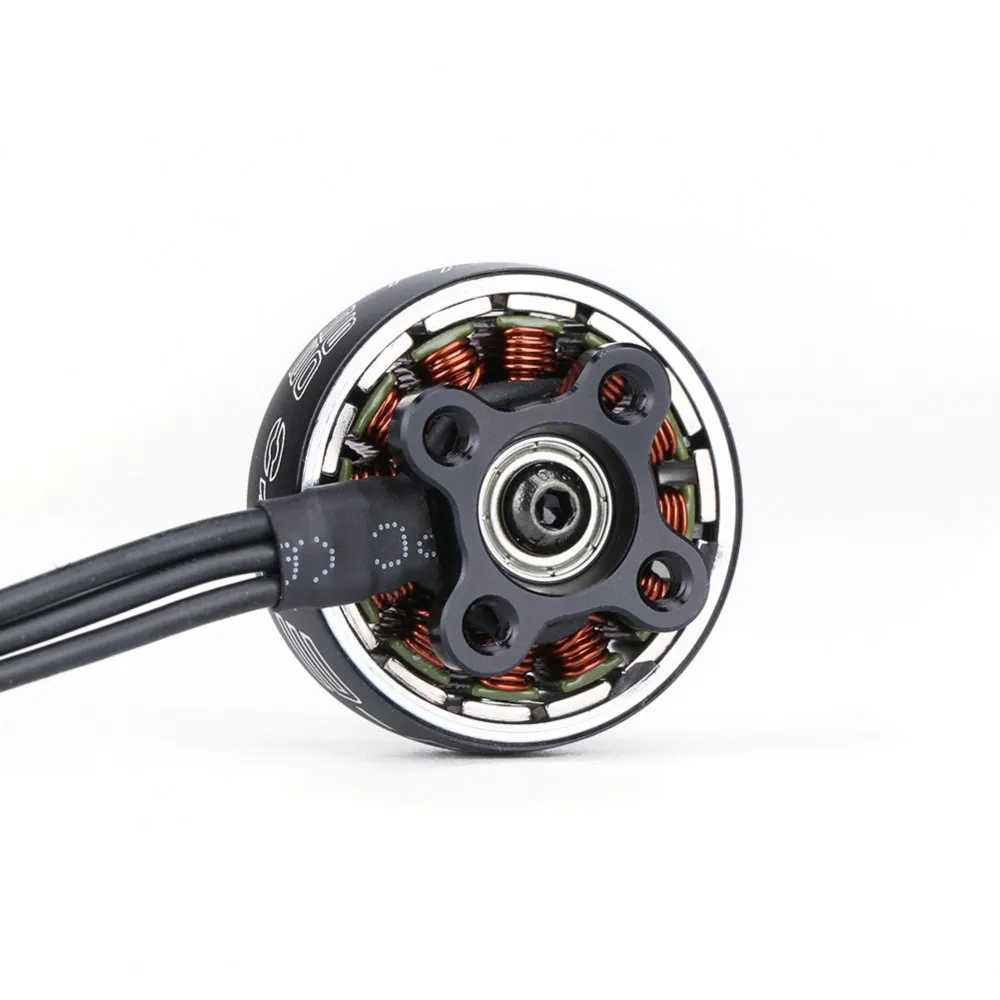

The XING-E Pro 2306 motor is built with precision-crafted 6061 CNC machined aluminum components, a durable 4mm steel shaft, and secured by a hex bolt set screw.
Any questions, or notice any errors or missing details ? Â Let us know !Â
The iFlight XING E Pro 2306 series offers robust and powerful FPV motors ideal for FPV racing, known for their impressive XING performance and excellent value. The Xing 2306 1700KV / 2750KV sized motor includes a high-strength 4mm steel hollow shaft, single strand windings for enhanced performance, an M3 shaft screw, and larger 9x4x4mm NSK bearings. These affordable motors are evaluating to be strong and durable, with a focus on quality.
Features of XING E Pro 2306 motor

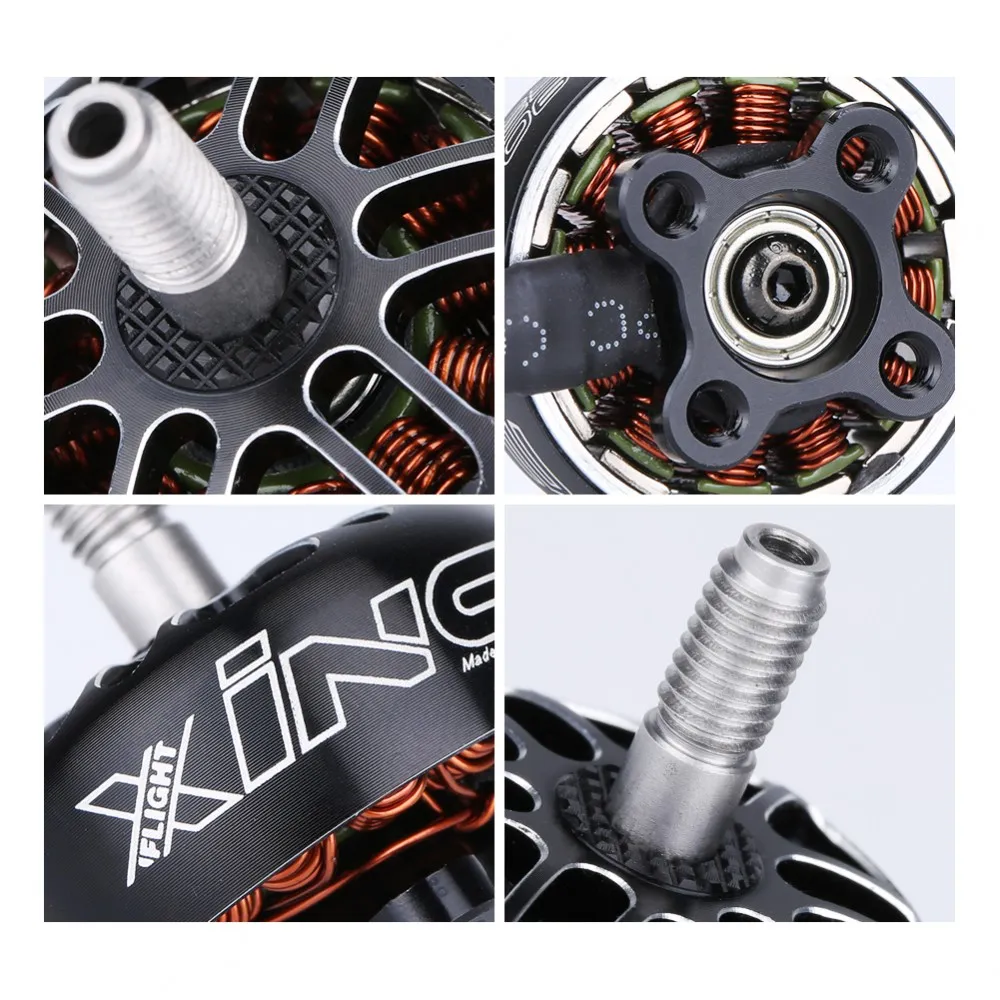

- Precision-crafted top and base components made from 6061 CNC machined aluminum
- Secured with a hex bolt set screw
- Utilizes single-strand copper wiring
- Durable 4mm steel shaft with high-strength properties
- Equipped with N52SH high-temperature magnets and NSK bearings
- Features a 16x16mm hole pattern
Specifications:
-2306 1700KV / 2450KV / 2750KV
-Configuration: 12N14P
-Stator Diameter: 24mm
-Magnets: N52SH Curved
-Bearing Size: 9x4x4
-Shaft Diameter: 4mm / Steel
-Base Mounting Pattern: 16x16mm M3 Thread
-Motor Dimension:29.5×18.7mm

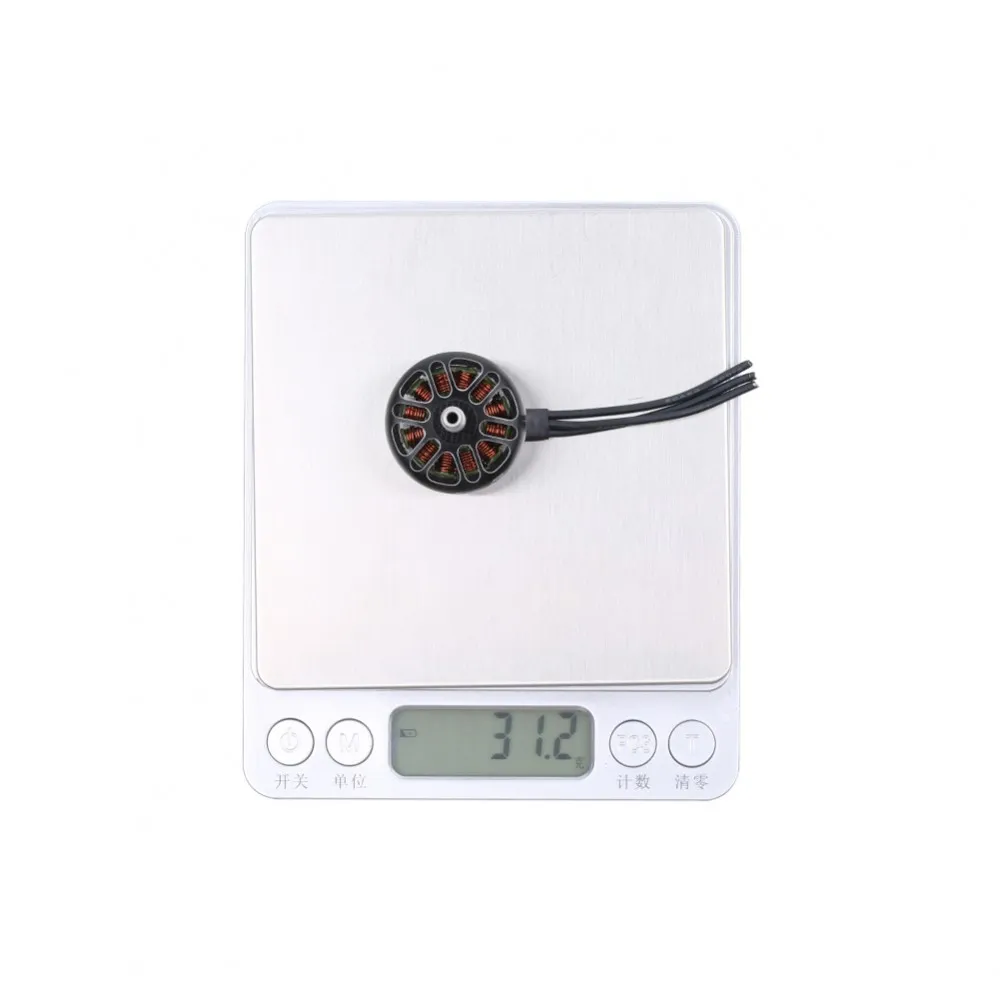

-Weight:33.1g (150mm wires)
-Idle Current @12.6v (Io):2.1A
-Cells (LiPo): 2-6S
-Max Burst Current <10s:55.22A
-Max Power (W) 60s:885.4W
-Internal Resistance (Rm): 40.6mΩ
-Motor Wire Length: 150mm / 20AWG
Package included:
1pc x iFlight XING E Pro 2306Â motor
