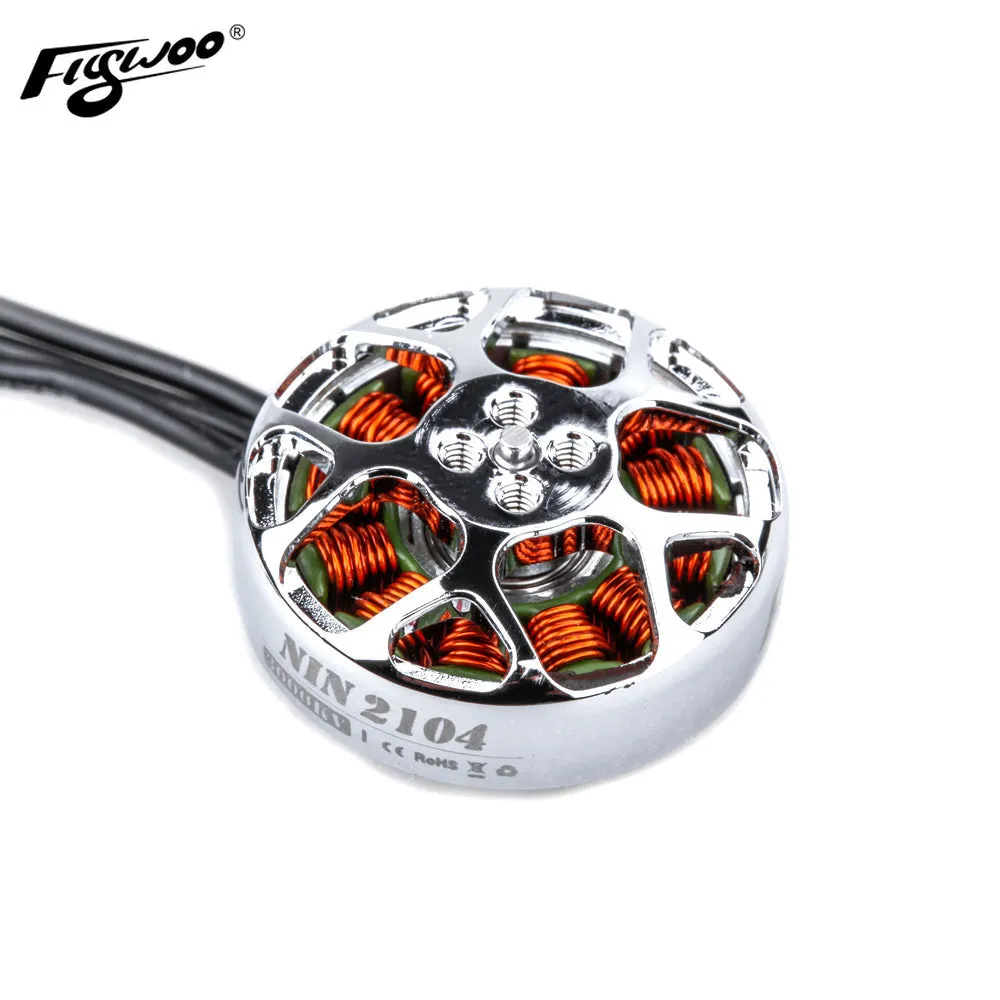

Flywoo Nin V2 2104 – 1800KV

Introducing the Flywoo Nin V2 2104 – 1800KV, a singular powerhouse propulsion solution designed to revolutionize your FPV experience. Engineered with precision and performance in mind, this motor embodies Flywoo’s commitment to pushing the boundaries of drone technology.

At the core of the Nin V2 2104 motor lies an ultra-efficient 1800KV stator, meticulously crafted to deliver optimal thrust and endurance. With its lower KV rating, this motor excels in providing smooth and precise control, making it an ideal choice for aerial photography, cinematic flights, and long-range exploration

Features:

1. High Efficiency
2. Smooth and Precise Control
3. Idle current(10) : @10V(A)
4. Compact and Lightweight Design
5. Durable Construction
6. High-Quality Bearings
7. Enhanced Maneuverability

Specifications:

1. Configu-ration :12N14P
2. Stator Diamter : 21mm
3. Stator Length : 4mm
4. Shaft Diameter : 3mm(in) 1.5mm(out)
5. Motor Dimension(Dia.*Len) : Φ25.57*13.5mm
6. Weight(g) : 16（3cm Wire）
7. Idle current(10) : @10V(A) :  0.5
8. No.of Cells(Lipo) : 4~6S
9. Max Continuous Power(W) 3S : 533
10. Internal Resistance : 210mΩ
11. Max Current(3S) : 22.2A
12. Max.Effciency Current : (0.6-2A)>86%

Package Includes:

1 x Flywoo Nin V2 2104 – 1800KV 1 PC
