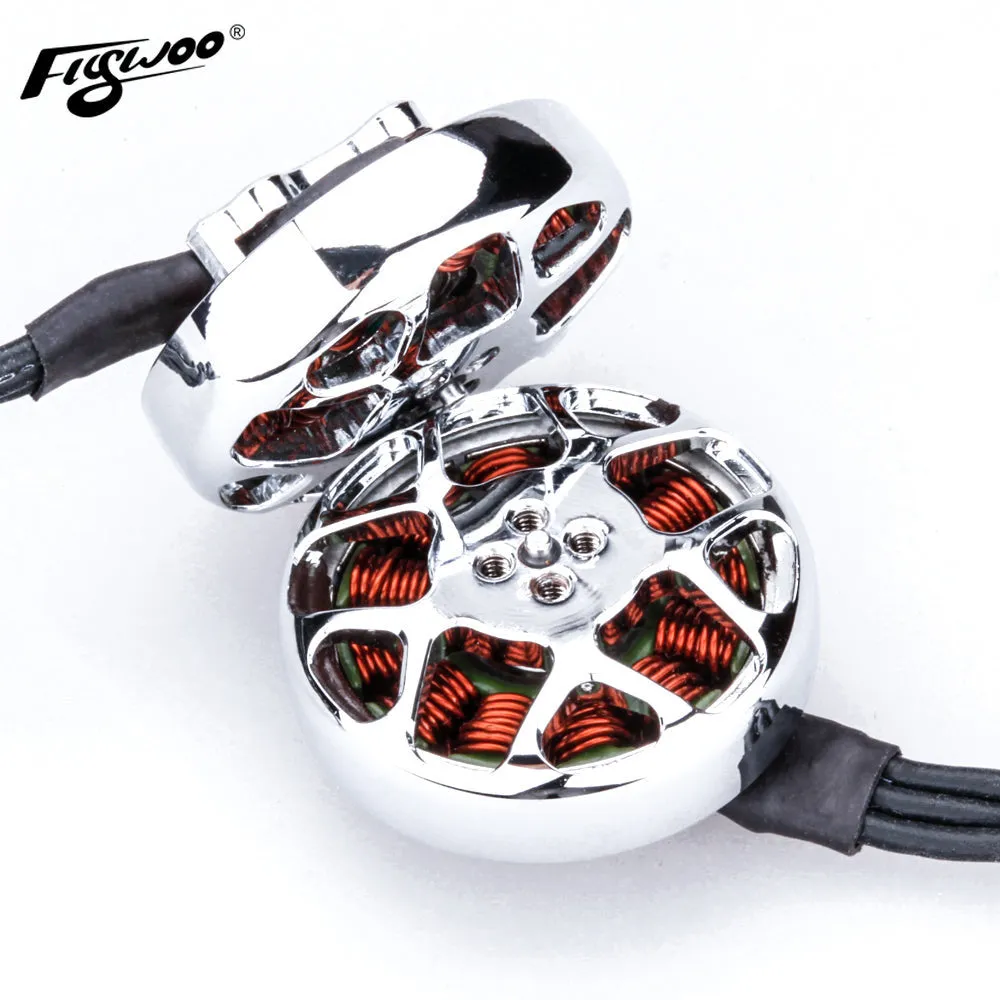

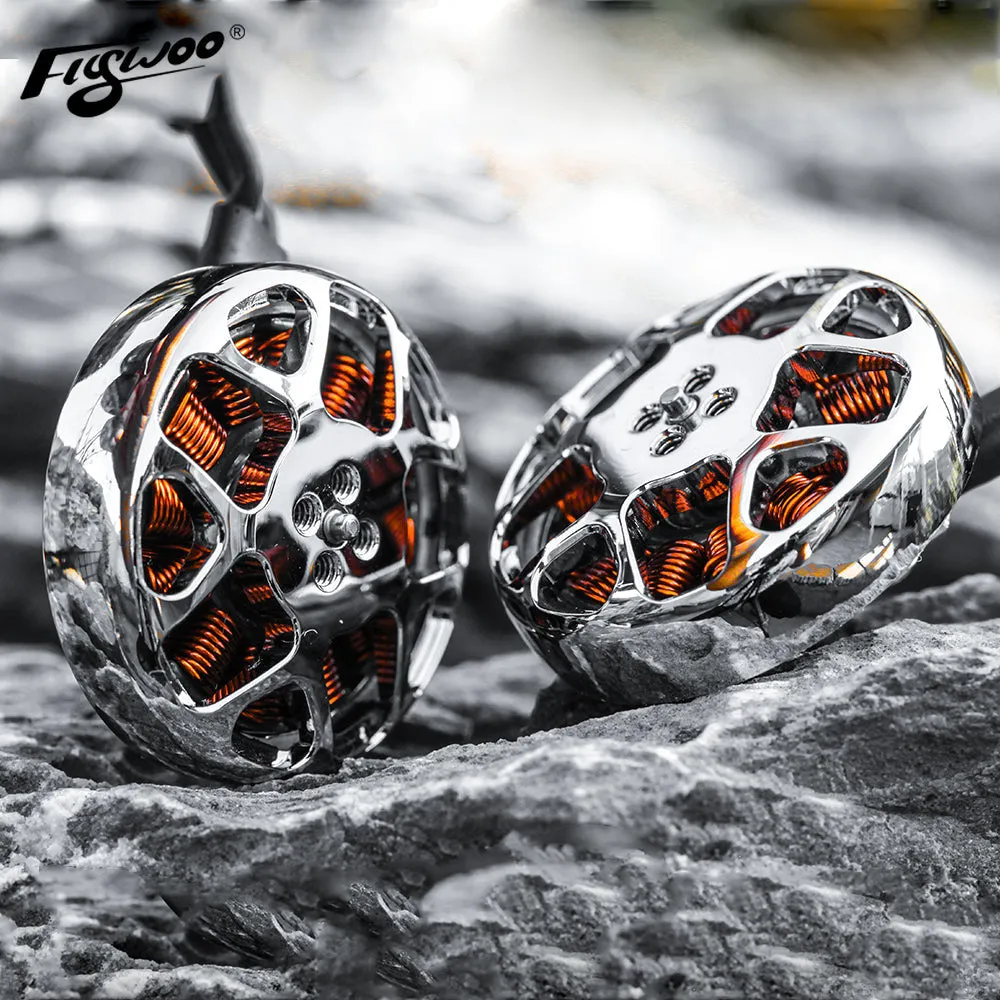

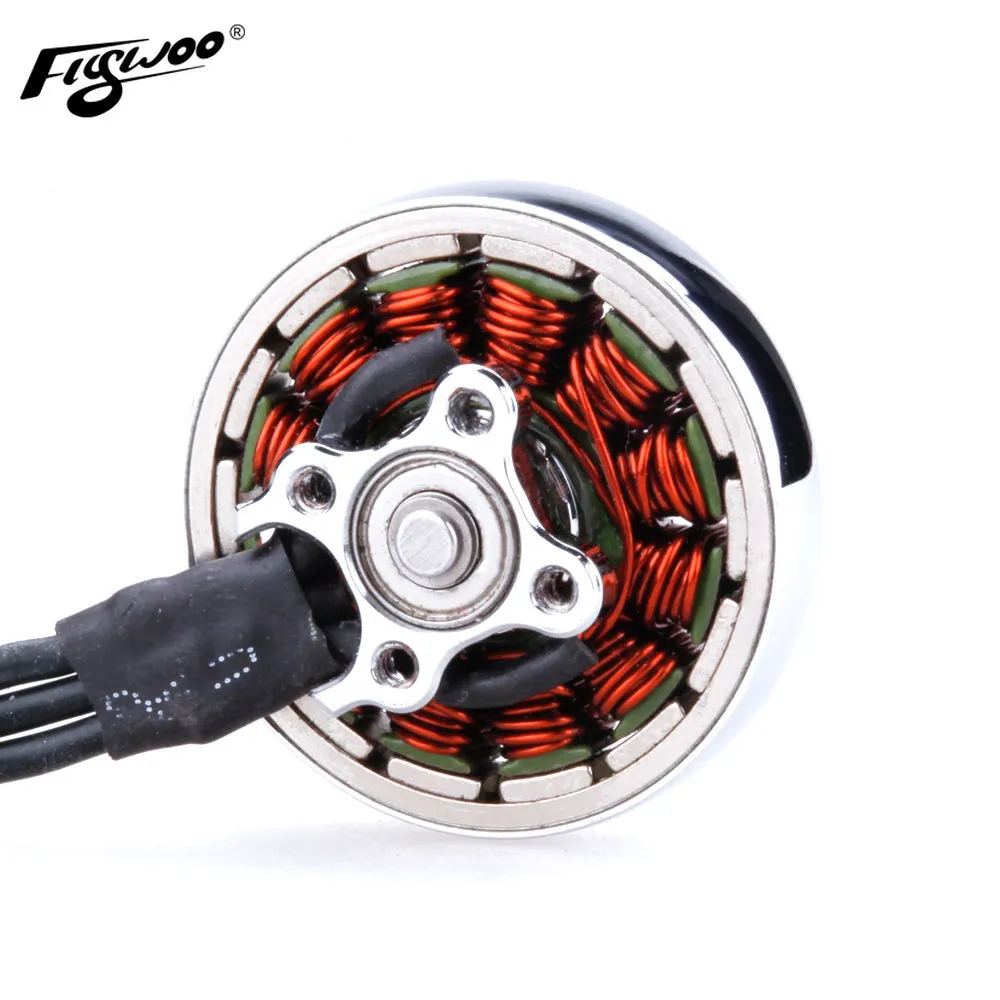

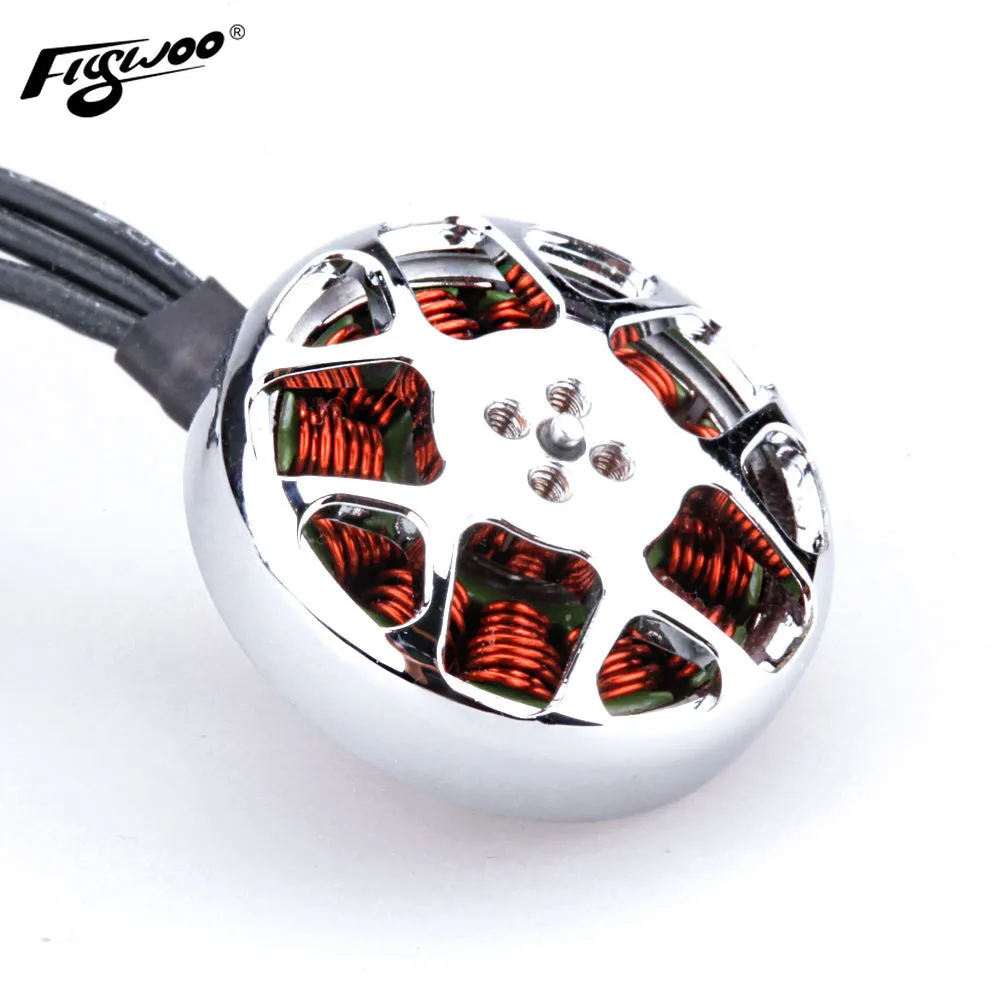

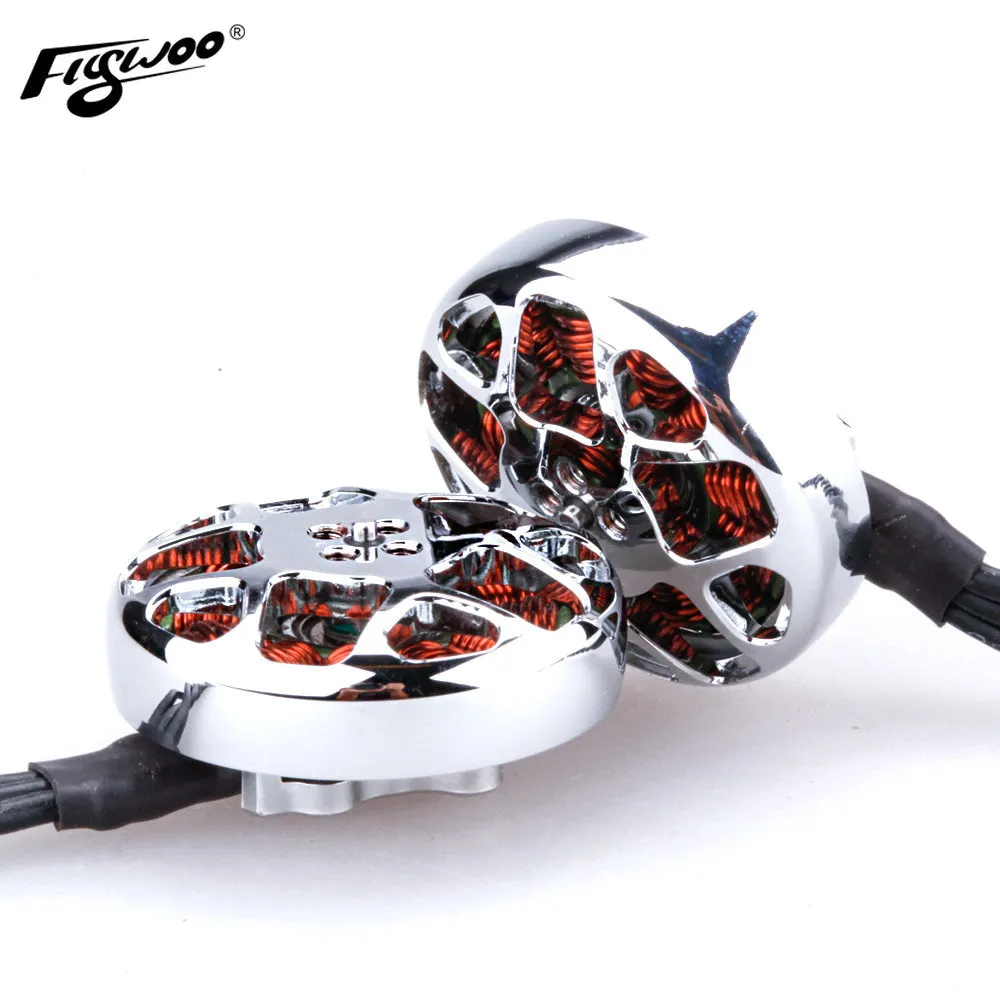

Flywoo NIN 2303.5 Ultralight Fpv Motor 1750kv ( Silver )

FLYWOO NIN 2303.5 Ultralight was made to the highest standards of FPV freestyle racing. Using high grade unibell design , and the electroplating process that looks clean and aggressive at the same time. High-quality Curved N52H magnet , Japan NSK Bearing.

Great for Long range , freestyle and racing ! like 3″cinewhoop , 4″-5″ toothpick , 6-7” long range!

Specifications

KV: 1750KV

• Configu-ration :12N14P
• Stator Diamter : 23mm
• Stator Length : 3.5mm
• Shaft Diameter : 3mm(in) 1.5mm(out)
• Motor Dimension(Dia.*Len) : Φ29.1*13.5mm
• Weight(g) : 21.5（3cm Wire）
• Idle current(10) : @10V(A) :  0.58
• No.of Cells(Lipo) : 5~6S
• Max Continuous Power(W) 3S : 559
• Internal Resistance : 173mΩ
• Max Current(3S) : 23.3A
• Max.Effciency Current : (1.5-3A)>85%

KV: 3000KV

• Configu-ration :12N14P
• Stator Diamter : 23mm
• Stator Length : 3.5mm
• Shaft Diameter : 3mm(in) 1.5mm(out)
• Motor Dimension(Dia.*Len) : Φ29.1*13.5mm
• Weight(g) : 21.5（3cm Wire）
• Idle current(10)  @10V(A) : 1.25
• No.of Cells(Lipo) : 3~4S
• Max Continuous Power(W) 3S : 656
• Internal Resistance : 71mΩ
• Max Current(3S) : 41A
• Max.Effciency Current : (2.5-5A)>85%
