Build Your first FPV drone
A Beginner’s Guide to Crafting Your Ultimate Flying Machine
Building your own FPV (First-Person View) drone can be one of the most rewarding experiences for a drone enthusiast. Not only do you get to experience the thrill of flying from a pilot’s perspective, but constructing your own drone gives you a deeper understanding of its mechanics and performance. In this beginner-friendly guide, we’ll take you through everything you need to know to build your first FPV drone from scratch.
Why Build Your Own FPV Drone?
Before diving into the process, let’s talk about why building your own FPV drone is such an attractive option:
- Customization: When you build your own drone, you can handpick the components based on your specific needs and preferences, whether it’s for casual flying, racing, or cinematography.
- Learning Experience: Building a drone from scratch gives you a solid understanding of how each part works together. This knowledge comes in handy when troubleshooting or upgrading your drone.
- Satisfaction: There’s nothing quite like the thrill of watching your self-built FPV drone take off into the sky for the first time
What You’ll Need to Build Your First FPV Drone
Building an FPV drone requires a mix of parts and tools. Here’s a breakdown of the essential components you’ll need:
1. Drone Frame
- What It Is: The frame is the foundation of your drone. It houses all the other components and provides the structure.
- What to Look For: Choose a frame that’s lightweight yet durable. For beginners, a 5-inch frame is a great starting point. Make sure the frame can accommodate all the components you plan to use.
2. Motors
- What It Is: Motors provide the power needed for your drone to lift off the ground and fly.
- What to Look For: For beginners, opt for brushless motors, as they provide more power and durability. Look for motors that match the size of your frame.
3. Electronic Speed Controllers (ESCs)
- What It Is: ESCs regulate the speed of each motor and allow you to control the drone’s movements.
- What to Look For: Ensure the ESCs are compatible with the voltage and current rating of your chosen motors.
4. Flight Controller
- What It Is: The flight controller is the brain of the drone. It processes input from your remote controller and stabilizes the drone in flight.
- What to Look For: Choose a flight controller that is easy to configure and has good compatibility with other components. Betaflight and KISS are popular choices.
5. FPV Camera and VTX (Video Transmitter)
- What It Is: The FPV camera captures the view from the drone, while the VTX transmits the video feed to your goggles or monitor.
- What to Look For: Pick a camera with a good field of view and low latency. For the VTX, ensure that it offers sufficient power for long-range flying and fits within legal regulations in your area.

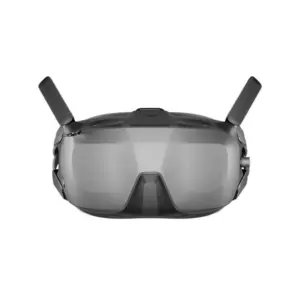

6. FPV Goggles/Monitor
- What It Is: These allow you to see what your drone sees in real-time, providing that immersive FPV experience.
- What to Look For: FPV goggles provide the best immersion, but if you’re on a budget, you can start with a screen/monitor to view the live feed.
7. Transmitter and Receiver
- What It Is: The transmitter is the remote control you use to fly your drone, while the receiver is mounted on the drone and communicates with the transmitter.
- What to Look For: Choose a transmitter with good range and ergonomics. Popular options include the FrSky Taranis and Spektrum radios.
8. Batteries
- What It Is: Batteries power your drone. LiPo (Lithium-Polymer) batteries are commonly used due to their high discharge rates and light weight.
- What to Look For: Make sure to choose batteries with the right voltage (usually 4S or 6S) and capacity to meet your drone’s power needs.
9. Propellers
- What It Is: Propellers provide thrust and control for your drone. They come in various sizes and pitches.
- What to Look For: Choose propellers that are the correct size for your motor and frame. For beginners, 5-inch props are standard and offer a good balance of stability and speed.
10. Miscellaneous Tools and Accessories
- Tools: You’ll need basic tools such as a soldering iron, heat shrink tubing, screws, zip ties, and a multimeter.
- Accessories: Items like vibration dampers, camera mounts, and gimbals can improve your drone’s performance and stability.
Step-by-Step Guide to Building Your FPV Drone
Step 1: Assemble the Frame
- Begin by assembling the frame according to the instructions. Some frames come pre-assembled, while others might require more effort. Make sure everything is tightly screwed together to prevent any wobbling during flight.
Step 2: Mount the Motors
- Attach the motors to the frame using screws. Motors typically mount in each corner of the frame and must be securely attached to ensure smooth rotation.
Step 3: Install the ESCs
- Solder the ESCs to the motors. Ensure that the wires are properly connected, with no exposed parts. It’s also a good idea to mount the ESCs on the arms of the frame, using zip ties or double-sided tape.
Step 4: Connect the Flight Controller
- Solder the wiring from the ESCs to the flight controller. Follow the flight controller’s manual carefully to ensure proper connections. Most flight controllers have a clear diagram to guide you.
Step 5: Attach the FPV Camera and VTX
- Mount the FPV camera at the front of the drone, ensuring a clear view. Connect the camera to the VTX and secure it in place. Double-check all wiring to avoid loose connections.
Step 6: Install the Receiver
- Solder the receiver to the flight controller and place it on the drone. Make sure it’s securely mounted to avoid any interruptions in communication with your transmitter.
Step 7: Add the Propellers
- Install the propellers by screwing them into the motor shafts. Double-check that each propeller is securely attached and in the correct orientation.
Step 8: Wire Up the Battery
- Connect the battery leads to the power distribution board or the flight controller, depending on your setup. Make sure the battery is securely mounted to the frame, and always use a strap to prevent it from shifting during flight.
Step 9: Test and Calibrate
- Before taking your drone into the air, do a thorough pre-flight check. Calibrate the flight controller and ensure that all components are functioning correctly.
Tips for Your First Flight
- Start Slow: Don’t push your drone too hard on the first few flights. Start with basic hovering and gradually build up your skills.
- Choose the Right Location: Fly in an open area with minimal obstacles, like a large field, so you can focus on learning how to control the drone.
- Safety First: Always fly your drone in a safe and legal area, and wear appropriate protective gear like safety goggles when working with the drone.
Building your own FPV drone is a thrilling and rewarding experience. While the process can seem overwhelming at first, following the right steps and using quality components will make the journey much smoother. As you gain more experience, you can continue to upgrade and tweak your drone for better performance, whether it’s for racing, cinematic flying, or casual exploration.
Are you ready to build your first FPV drone? With the right knowledge, tools, and a bit of patience, you’ll be soaring through the skies in no time!
